Disposable and Reusable Dual-Chamber Pen Injectors: Two Device Directions for Drug Reconstitution

Many injectable formulations cannot remain premixed throughout their intended shelf life. Lyophilized drugs, diluents and certain two-component formulations may need to remain separated during storage and be combined shortly before administration.

reusable dual chamber pen

A dual-chamber cartridge pen integrates separated storage, reconstitution and injection into one drug delivery platform. Depending on the treatment plan and device lifecycle, pharmaceutical companies can evaluate either a disposable or reusable dual-chamber pen direction.

Xinfuda provides both formats. They are not competing versions of the same product, but complementary device options for different drug, treatment and user requirements.

A Shared Dual-Chamber Reconstitution Concept

Both disposable and reusable dual-chamber pen injectors are built around the same fundamental requirement: keeping two compatible components separated before use.

A typical dual-chamber cartridge may contain a lyophilized drug in one chamber and a diluent in the other. Before injection, the device activates the cartridge so that the components can be combined inside the closed system.

Compared with a workflow involving separate vials, syringes or transfer needles, an integrated dual-chamber pen can help reduce manual transfer steps. The final reconstitution sequence, mixing time, visual inspection and injection procedure must still be defined and validated for the specific drug-device combination.

Xinfuda's current dual-chamber pen portfolio supports a 4 mL dual-chamber cartridge direction and variable-dose project discussion. Final cartridge geometry, chamber volumes, dose range and operating sequence should be confirmed during technical evaluation.

disposable dual chamber pen

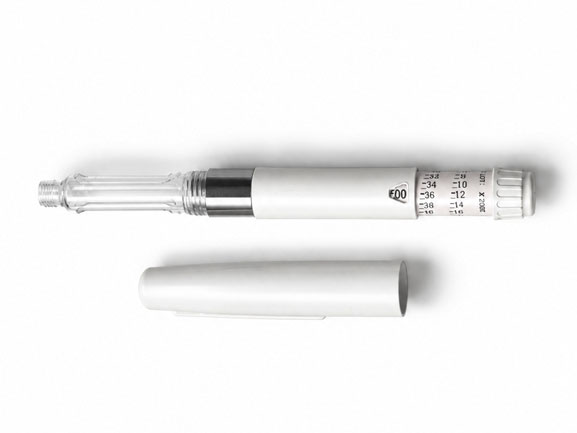

Disposable Dual-Chamber Pen Injector

A disposable dual-chamber pen injector combines the medicine-containing cartridge and pen device into a complete single-use product direction.

The two components remain separated during storage. Before administration, the user activates the device to begin the reconstitution process and prepares the required dose according to the validated instructions for use. After the medicine has been used, the complete pen is discarded.

This direction can be considered when a pharmaceutical project requires:

A complete device supplied with the medicine cartridge

A defined single-use product lifecycle

Integrated reconstitution and injection

Reduced cartridge replacement steps for the user

Project-specific variable dosing

Customized color, branding, labeling and packaging

Potential project directions include lyophilized biologics, growth hormone, glucagon and peptide formulations. Suitability depends on formulation stability, reconstitution behavior, delivered volume, viscosity and the intended treatment workflow.

Reusable Dual-Chamber Pen Injector

A reusable dual-chamber pen uses a different lifecycle strategy. The pen body remains in service, while the medicine-containing dual-chamber cartridge is replaced according to the treatment plan.

The platform retains the same separated-storage and in-cartridge reconstitution concept while supporting repeated use of the pen body. It can be evaluated for treatment programs involving multiple replacement cartridges or longer-term device use.

This direction can be considered when a project requires:

A reusable pen body with replaceable dual-chamber cartridges

Repeated-treatment or multi-cartridge use

Variable-dose project planning

A durable device appearance

Customized metallic colors, surface finishes and branding

An integrated loading, reconstitution and injection workflow

The reusable direction requires additional evaluation of cartridge replacement, pen service life, dose-setting logic, user training and the consistency of the reconstitution process across repeated use.

Two Complementary Device Directions

Building the Right Dual-Chamber Pen Strategy

Dual-chamber pen development should begin with the drug presentation and treatment workflow rather than choosing the device format in isolation.

For pharmaceutical, biotech, CDMO and medical device customers, Xinfuda provides both disposable and reusable dual-chamber pen directions as part of the same injection pen platform.

To begin a project discussion, provide your cartridge drawing, chamber volumes, reconstitution sequence, target dose, treatment frequency and intended device lifecycle.
