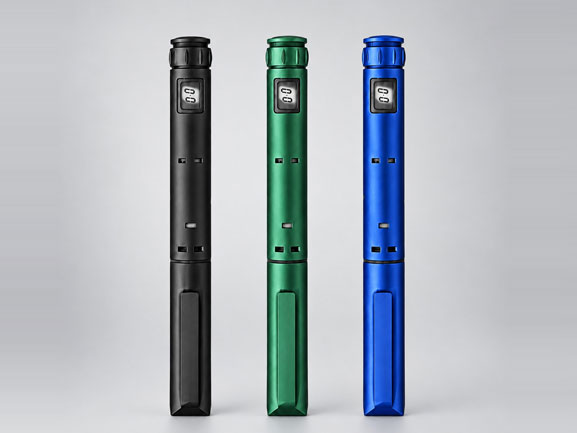

A preclinical team may know the peptide concentration and intended dose but still be unprepared to select a pen. The missing link is usually the primary container. A disposable injection pen does not interact with a theoretical 3 mL cartridge; it interacts with a specific cartridge, stopper, closure, dose mechanism and needle configuration.
The purpose of an early evaluation is not to prove the final drug-device system. It is to determine whether the proposed cartridge and dose direction are suitable enough to justify the next stage of device work. That distinction keeps an appearance sample from being mistaken for functional evidence.
Start with the Experiment, Not the Pen Color
Before choosing a device sample, define what the preclinical work needs to learn. A pen may be relevant when the administration sequence, dose-setting method, cartridge presentation or repeated handling is part of the study. It may add little value when the laboratory is frequently changing compounds, concentrations and delivered volumes.
Write down the intended evaluation in one sentence. For example:
Evaluate whether a defined peptide cartridge can be installed and operated in a disposable variable-dose pen platform.
Compare a proposed needle and delivered volume under representative formulation conditions.
Review the user sequence and packaging direction for a future branded peptide presentation.
If the study objective cannot be stated clearly, the project is probably not ready for a custom pen discussion.
Lock the Cartridge Envelope
Nominal capacity is only the beginning. Two cartridges described as the same size may differ in dimensions, neck and closure details, stopper design, flange geometry or usable travel. These differences can affect retention, alignment and interaction with the drive mechanism.
The initial cartridge package should include:
A controlled drawing with dimensions and tolerances.
Cartridge material and supplier reference.
Front and rear stopper drawings and material information.
Closure or seal configuration.
Target fill volume, headspace and expected stopper positions.
Representative empty components for an early fit review when available.
A supplier can screen dimensional direction with these inputs. Final compatibility and performance still require representative filled components and a project-specific verification plan.
Translate the Peptide Dose into a Liquid Delivery Requirement
A peptide dose expressed only in milligrams does not define the pen. The device works with liquid volume and mechanical travel. The project team should connect the target peptide mass to concentration, delivered volume and the required dose sequence.
Minimum dose: The smallest intended delivered volume, not simply the lowest number that looks attractive on a scale.
Maximum dose: The largest intended volume, including the effect of the proposed concentration and formulation strategy.
Dose increment: The smallest step that the final labeling and mechanism are expected to support.
Doses per cartridge: The expected number of administrations after accounting for priming, residual volume and the defined use sequence.
These inputs allow a useful mechanism discussion. They do not replace dose-accuracy testing with the final configuration.
Viscosity, Temperature and Needle Must Be Reviewed Together
A viscosity value without temperature is incomplete. A needle description without gauge, length and relevant interface information is also incomplete. Delivered volume, viscosity, needle geometry, stopper behavior and drive force influence the injection experience as a connected system.
For an early review, provide the available viscosity range and the temperature at which it was measured. Identify the proposed needle and explain whether the project has a target injection time or a maximum acceptable operating force. If these values are not yet known, state that they are open design inputs rather than allowing the sample device to define them by accident.
Choose the Right Sample Stage
Appearance sample: Useful for size, grip, color, branding space and a basic user-sequence discussion. It does not prove cartridge fit or delivery performance.
Platform sample: Useful for understanding an existing mechanism and dose-setting direction. Its internal configuration may not match the proposed peptide cartridge.
Cartridge-fit sample: Uses the proposed container components for an early dimensional and assembly review. It does not establish performance with the final formulation.
Functional development sample: Uses a defined configuration and representative inputs for planned engineering tests. Its purpose and limits should be recorded before testing begins.
Using these labels in emails, quotations and sample records prevents different teams from assuming that the same sample answers every question.
Common Reasons a Cartridge and Pen Do Not Match
The cartridge fits visually but its stopper travel does not match the required dose range.
The nominal fill is acceptable, but priming and residual volume leave too few usable doses.
The selected needle and formulation create a delivery time or operating force outside the project target.
The cartridge closure or exposed geometry does not align with the retention and assembly concept.
A branded scale is approved before the concentration and liquid-volume relationship is stable.
A research sample is treated as evidence for human use without the required development and verification work.
A Useful Brief for the Device Supplier
A concise project brief should identify the intended use, study stage, peptide presentation, cartridge drawing, stopper and closure information, target fill, dose range, increment, viscosity information, proposed needle, target sample quantity and future supply direction. It should also identify the organization responsible for formulation, filling and final drug-device decisions.
