What is a dual chamber cartridge pen

A dual chamber cartridge pen is an advanced drug delivery device designed to store, mix, and inject medications that require reconstitution before use-typically biologic or peptide drugs that are unstable in liquid form.

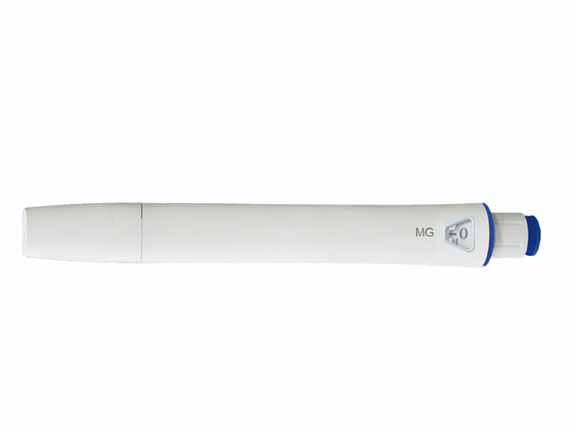

dual chamber cartridge pen

What Is a Dual Chamber Cartridge Pen?

A dual chamber cartridge pen contains a two-compartment (dual chamber) cartridge inside a pen injector:

One chamber holds the lyophilized (freeze-dried) drug

The other chamber contains the diluent (liquid solvent)

These two components are kept separate until the moment of injection. When activated, the device allows controlled mixing of the drug and diluent, followed by immediate injection.

How It Works

The process is designed to be simple and reliable:

Activation

The user initiates the device (e.g., by twisting or pressing).

Reconstitution

The diluent is transferred into the drug chamber.

Mixing

The lyophilized drug dissolves into the solution.

Injection

The reconstituted drug is delivered subcutaneously.

Why Dual Chamber Technology Is Used

Many advanced therapies cannot remain stable in liquid form for long periods. Dual chamber systems solve this by:

keeping the drug in a stable dry state

enabling on-demand reconstitution

ensuring accurate dosing and efficacy

This design is commonly used in treatments such as

Human Growth Hormone and other sensitive biologic drugs.

Key Benefits

1. Improved Drug Stability

Separating the drug and diluent extends shelf life and maintains potency.

2. Integrated Reconstitution

Eliminates manual mixing steps, reducing complexity and user error.

3. Enhanced Safety

A closed system reduces contamination risk during preparation.

4. Better Patient Experience

Simplifies the injection process, improving adherence.

Dual Chamber vs Single Chamber

Unlike standard single chamber injection pens that contain pre-mixed liquid drugs, dual chamber pens:

support lyophilized formulations

allow fresh preparation before injection

reduce degradation risks

Summary

A dual chamber cartridge pen is a combined drug storage, preparation, and delivery system that enables safe and efficient administration of complex injectable therapies.

It is particularly valuable for:

✔ biologic drugs

✔ peptide therapies

✔ drugs requiring reconstitution
