Metal Reusable Pen

Standard and Needle-Concealment Configurations for Cartridge-Based Therapies

Xinfuda's reusable metal pen platform combines a durable housing, adjustable dose setting and a replaceable-cartridge workflow. Pharmaceutical and device partners can select a conventional clip-cap model or a needle-concealment model, then evaluate dose scale, cartridge fit, injection force, needle interface, color and branding against project requirements.

Inquire Now Next Product

Functional Packaging Supplier

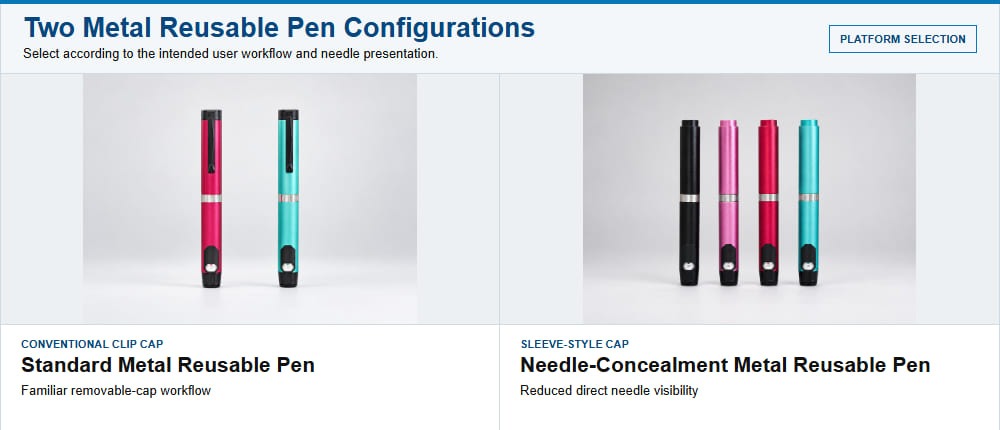

Choose the User Presentation That Fits Your Project

Both models are reusable metal platforms. The choice is based on the intended user workflow, needle presentation, cartridge system and project-specific usability requirements rather than a basic-versus-premium hierarchy.

Metal Reusable Pen

Baseline Metal Reusable Pen Configuration

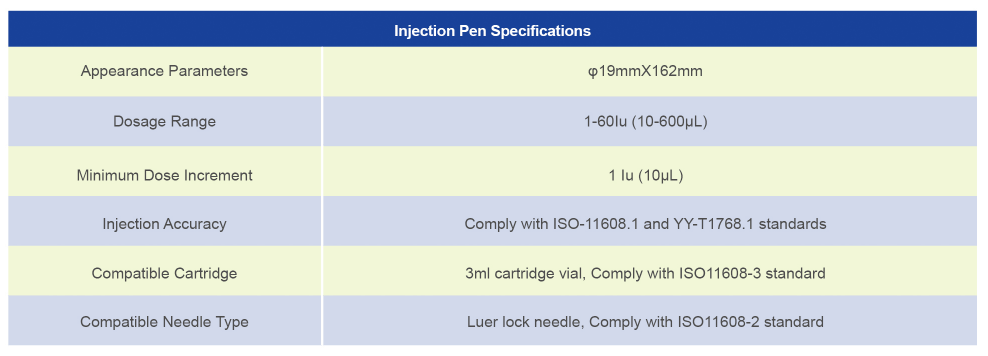

Parameter	Current Platform Direction
Overall dimensions	Approximately Ø19 mm × 162 mm
Baseline dose range	1–60 IU (approximately 10–600 μL)
Minimum dose increment	1 IU (approximately 10 μL)

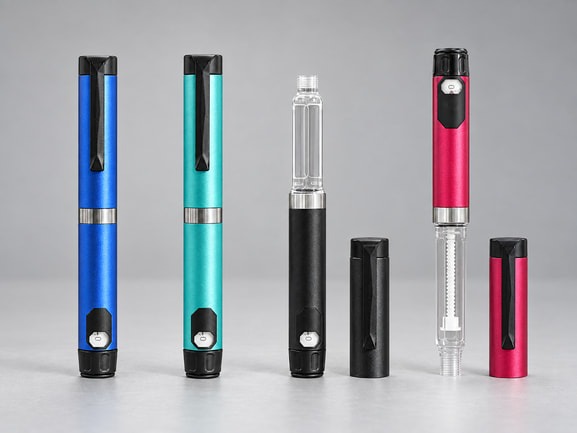

Primary container	3 mL replaceable cartridge; dimensional fit and stopper interaction require project verification
Needle presentation	Standard clip-cap or needle-concealment sleeve-cap configuration
Needle interface	Project-matched interface; compatibility must be confirmed against the selected needle drawing and intended workflow
Dose feedback	High-contrast display with audible and tactile dose-setting feedback
Design verification direction	Applicable requirements of ISO 11608-1 and relevant parts of the ISO 11608 series
Customization	Color, finish, branding, dose scale, delivery parameters and selected user-interface features

FAQ Metal Reusable Pen Project Questions

What is the difference between the standard and needle-concealment models?

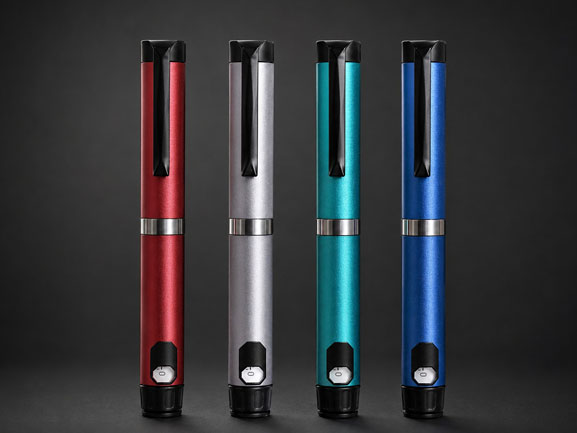

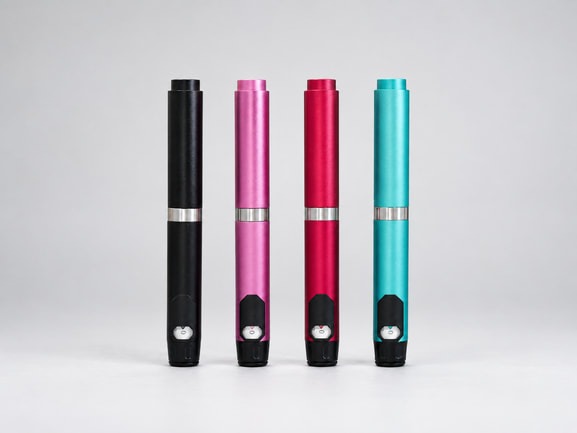

The standard model uses a conventional clip-cap presentation. The needle-concealment model uses a sleeve-style cap intended to reduce direct needle visibility. Selection depends on the target user workflow and project usability requirements.

Is every 3 mL cartridge directly compatible?

No. The cartridge drawing, stopper, flange or neck geometry, dimensional tolerances and interaction with the drive system must be reviewed before compatibility is confirmed.

What information should we provide for an initial evaluation?

Please provide the cartridge drawing, formulation viscosity, target dose range and increment, needle specification, desired injection time or force, intended users, target market and expected annual volume.
