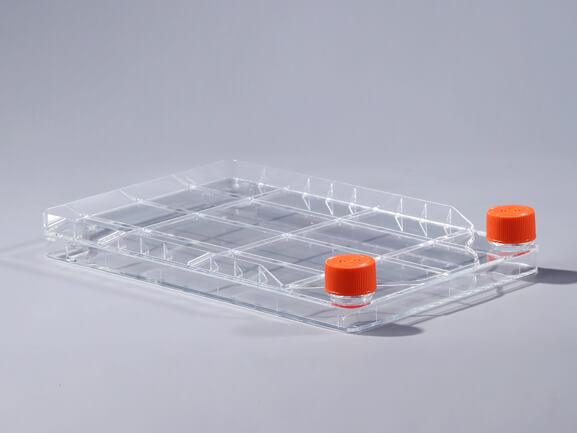

Multi-layer Biofactory Cell Factory System

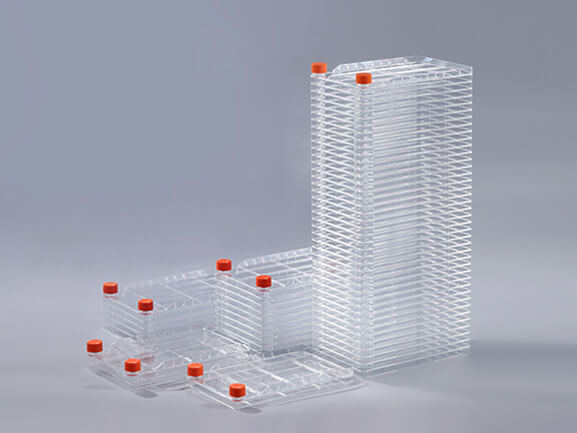

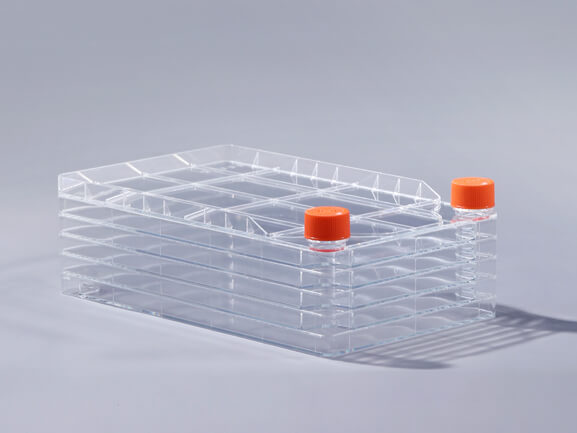

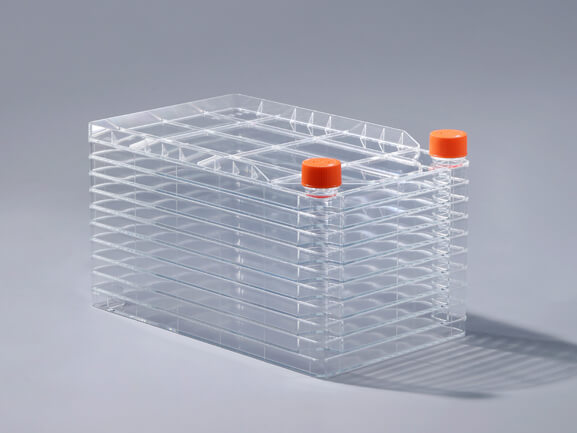

    Size: 1 layer, 2 layers, 5 layers, 10 layers, 40 layers

    Material: imported polystyrene (PS) raw materials

    Multi-layer Biofactory is designed to scale-up your cell production while maintaining a small working footprint. Due to its stacking ability, you can create multiple levels for increased cell yield, whether you grow adherent cells or in suspension.

Size
TierCultivation Area(cm²)Longth(mm))Wideth(mm))Height(mm)Packaging
1635335205.54820pcs/carton
21270335205.56510pcs/carton
52540335205.51164pcs/carton
105080335205.52012pcs/carton
4010160335205.57111pcs/carton



Feature

•The multi-layer biofactory adopts a wide-mouth design after entering the liquid and the bottle mouth. The filling and harvesting of the liquid is relatively rapid, and it is not easy to generate bubbles. At the same time, the large-mouth design is more conducive to gas exchangeand is suitable for high-density cell culture.

•The standard product is equipped with a 0.2um vent cap and a sealing cap, which can be used in different culture environments. The sterile vent cap can be used in the CO2 environment, and the sealing cap can be used in ordinary incubators and greenhouses that do not contain carbon dioxide. In addition, a liquid transfer cap is optional to facilitate the aseptic transfer of liquid, and a bottle cap suitable for liquid transfer can also be customized according to customer process requirements.

•The hydrophobic design of the breathable membrane of the bottle cap does not affect the sealing and breathability of the breathable membrane after contact with liquid.

•The cell factory adopts the imported glue bonding process, which can withstand a pressure of 10kPa, ensuring that the product does not leak during the entire process of culturing.
